Comfort Series
01

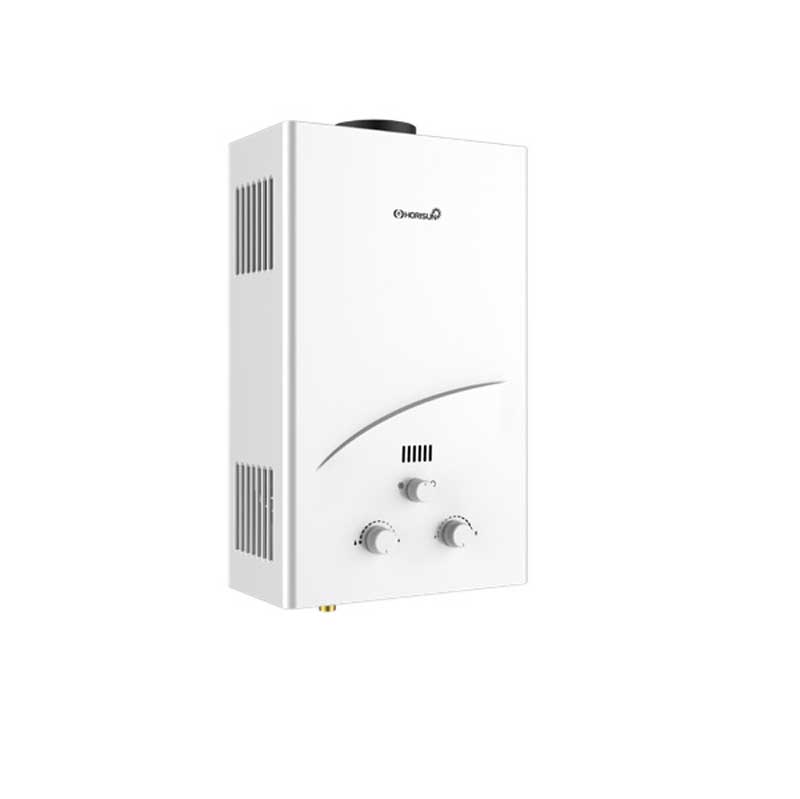

KC-200C, KC-200D Gas Water Heaters, Anti Clogging Protection
Product features
Model No.：KC-200C、KC-200D
FEATURES
● Streamline pressing design
● 0.015Mpa/0.025Mpa water pressure start-up
● Winter & Summer mode
Product parameters
| SPECIFICATION | |||
| Rated Power | 16KW | 20KW | 24KW |
| Exhaust Type | Flue type | Flue type | Flue type |
| Water Flow (Ltr/min)△T=25k | 8L | 10L | 12L |
| Chimney Diameter(mm) | φ108 | φ110 | φ110 |
| Water Pressure Range | 0.015~0.8Mpa | 0.015~0.8Mpa | 0.015~0.8Mpa |
| Power Supply | DC,3V | DC,3V | DC,3V |
| Product Dimension(mm) | 520*320*168 | 550*330*188 | 610*350*188 |
| Packing Dimension(mm) | 640*375*220 | 675*235*390 | 715*405*238 |
| Net Weight | 6.8kg | 7.8kg | 12kg |
| Gross Weight | 8kg | 9kg | 13.5kg |
| Loading Quantity 20GP/40HQ(pcs) | 530/1300 | 450/1100 | 400/1000 |
About KC-200C and KC-200D gas water heaters
Embracing modern home life, KC-200C and KC-200D gas water heaters bring you a thrilling hot water experience with their powerful 16/20/24KW power and large 8/10/12L capacity. These two models adopt a streamlined die-casting design, which not only has a stylish appearance, but also becomes a reliable partner for your home hot water supply with its sturdy and durable performance. They can easily start at water pressures as low as 0.015Mpa/0.025Mpa, providing stable hot water even in environments with low water pressure, allowing you to enjoy comfortable bathing anytime, anywhere. Specially equipped with winter and summer modes, allowing you to easily switch according to seasonal changes, whether it's cold winter or hot summer, you can enjoy just the right amount of water temperature. KC-200C and KC-200D are not only gas water heaters, but also thoughtful choices for your refined life. Choose us, make every bath a pleasure, and make the warmth of home within reach.
The safety protection technologies for gas water heaters include
Flameout protection device: automatically closes the gas valve when the flame goes out
Overheating protection device: automatically shuts off when the temperature exceeds 150 ℃
Safety device for excessive wind pressure: When the exhaust end is subjected to excessive wind pressure, it automatically cuts open the gas passage
Water gas linkage device: automatically cuts off the gas supply path when the water flow stops or the pressure is insufficient
Antifreeze protection device: to prevent the pipeline system inside the water heater from freezing and cracking
Smoke blockage safety device: cut off the gas solenoid valve to maintain power supply when the flame is extinguished, and close the battery valve
Oxygen deficiency safety protection device: automatically cuts off gas supply when the oxygen content in the air drops to 19%
Prevent incomplete combustion device: automatically close the gas supply path before the carbon monoxide content reaches 0.14%
Overpressure protection device: automatically relieves pressure when the waterway pressure is too high
Gas leakage alarm protection system: emits sound and light alarm signals when the gas supply pipeline leaks
We can accept OEM and ODM orders, and the factory can customize and produce suitable products for your local market based on the usage standards of the products you purchase. Please feel free to inquire about cooperation details!
